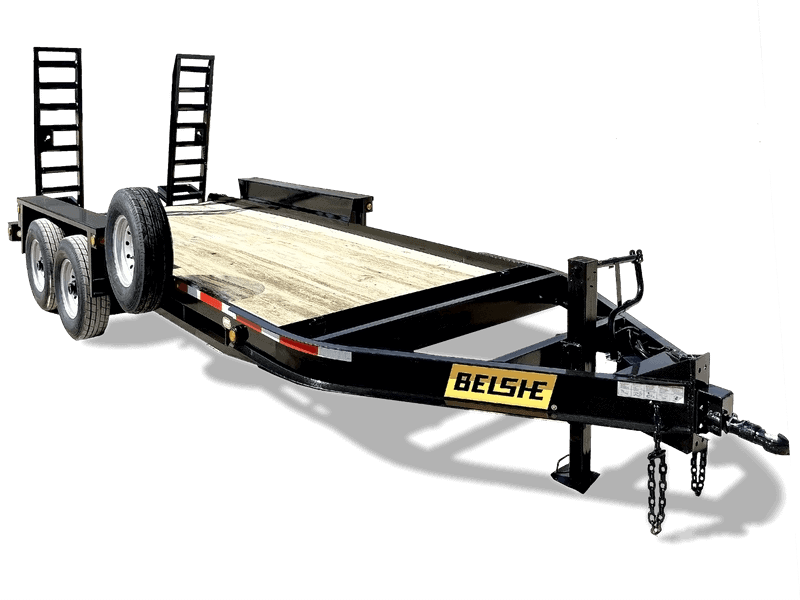

WB14 Tandem Axle Equipment Trailer
The WB14 Tandem Axle Equipment Trailer from Belshe is equipped with 7,000 lb. Belshe Axles and an 8 in. bent channel tongue, giving you the strength and capacity for your must rugged commercial needs. Sitting on 4 in. channel cross members and fully customizable, the WB14 gives you performance when and where you need it.
16 ft.
Length
101 in.
Width
14,000 lbs.
GVWR
Advertised Price Disclaimer: The displayed price is the Minimum Advertised Price (MAP) and may not reflect the final sales price. Current national promotions have been deducted from the MAP, but the actual sales price may vary depending on selected options or accessories. Please consult with our sales team for a personalized quote.
WB14 Tandem Axle Equipment Trailer
Let's Get Started
"*" indicates required fields
WB14 Tandem Axle Equipment Trailer Specs & Add-Ons
Key Specifications
GVWR 14,000 lbs.
TRAILER WEIGHT (MIN) 4,000 lbs.
Hitch 2.5 in. Pintle Ring or 2 5/16 in. Ball 19 in. – 26 in. Adjustable
Cargo Control D-Rings
Flooring 2 in. x 8 in. #1 Grade Treated Pine
Jack 12,000 lbs. Drop Leg
Lighting LED, Sealed Wiring Harness
Paint Primed, Acrylic Enamel – Black or Yellow Standard
Performance
Axles 7,000 lbs. Belshe Axles (x2)
Brakes Electric
Suspension 6-Leaf 2 in. Slipper Spring
Wheels 16 in. 8-Bolt
Tires 235 80R 16
Outer Rails 3.5 in. x 6 in. x 0.375 in. Angle A-36
Cross Members 4 in. x 5.4 lb. Channel A-36
Tongue 8 in. x 11.5 lb. Channel A-36
Fender 10 Gauge Formed
Ramps 6 ft. x 18 in. Ladder Bar Spring Assisted Adjustable Width
Dimensions
Deck Length 16 ft.
Width Between Fenders 80.5 in.
Overall Width 101 in.
Deck Height 21 in.
Fender Height 12.5 in.
Tongue Length 67.5 in.
Ramp Length 6 ft.
Overall Length 23 ft.
