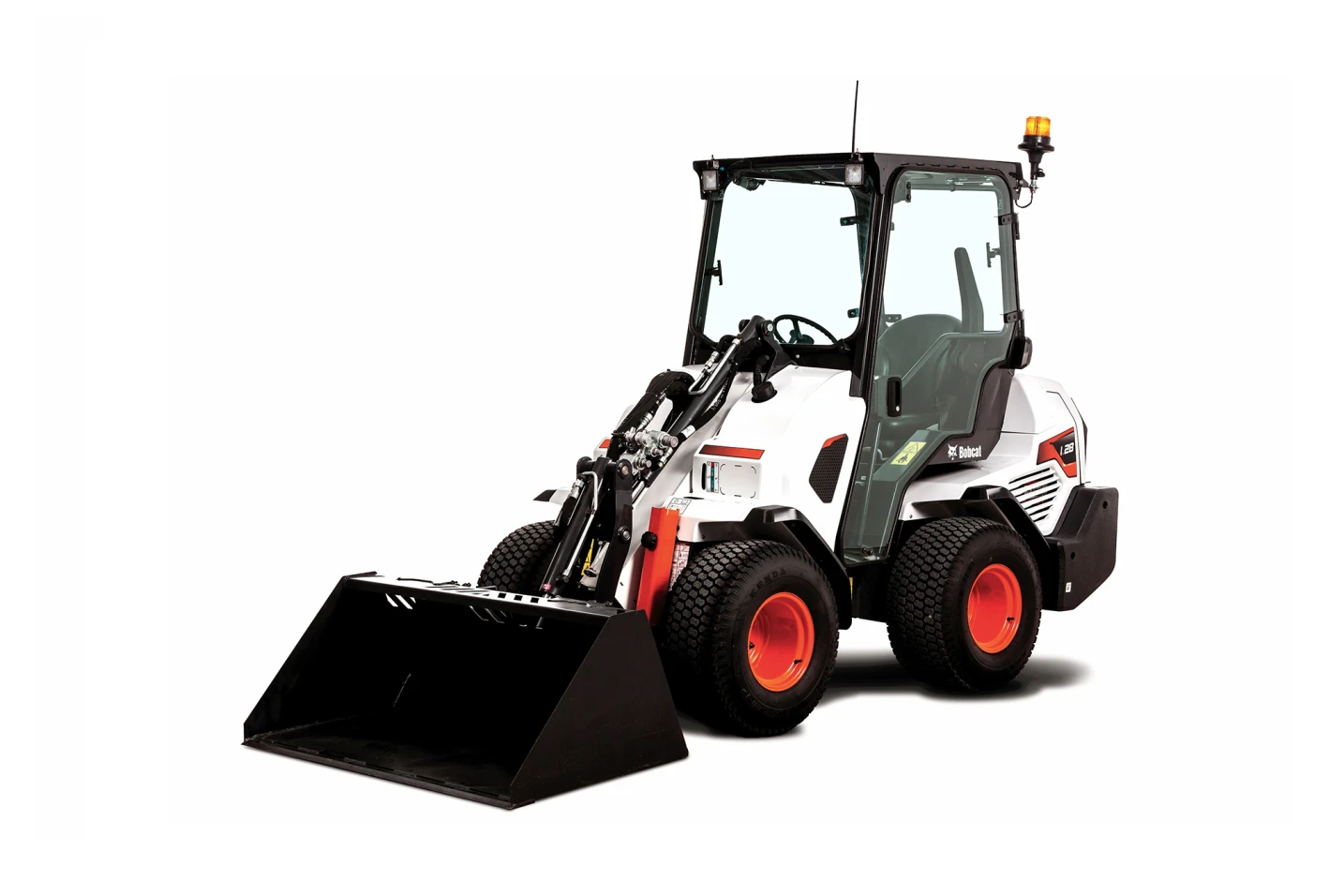

Bobcat L28 Small Articulated Loader

The L28 Bobcat® small articulated loader delivers big performance and heavy lifting in a small package.

24.8 hp

Horsepower

1,534 lb

Operating Capacity

4195 lb

Operating Weight

Small Articulated Loader Financing & Cash Rebates

As low as 0 % for 36 months or up to $1,500 USD in lieu of financing. Offer ends October 31, 2025.

Bobcat L28 Small Articulated Loader Features

Impressive Lifting Capacity

Impressive Lifting Capacity

Bobcat small articulated loaders offer impressive lifting capabilities to improve productivity in tight workspaces. They include a standard integrated counterweight for optimal lift capacity.

Minimal Ground Disturbance

Minimal Ground Disturbance

Small articulated loaders feature an articulation joint for tight turning and a light overall footprint to minimize a tight-turning articulated steering and light overall footprint to minimize cuts or tears in the turf when turning or hauling a load.

Tight Turning Radius

Tight Turning Radius

An articulation joint enables the rear tires to match the path of the front tires when turning, for a highly nimble machine that navigates around obstacles and works well in tight areas.

Telescoping Lift Arm

Telescoping Lift Arm

A telescoping lift arm on select models extends your lifting height and keeps the load level as you handle materials up high.

Comfortable Cab

Comfortable Cab

Cross-ventilation windows and an optional enclosed, heated cab keep operators comfortable in every season.

Bobcat L28 Small Articulated Loader Specs

** Listed specs based on machine base model. Actual specs may vary depending on model and options **

Specifications

Horsepower 24.8 hp
Rated Operating Capacity Straight (ISO) 1,534 lb
Rated Operating Capacity Art. (ISO) 1,222 lb
Operating Weight 4195 lb
Auxiliary Std Flow 12.1 gal/min
Width (over tires) 46.5 in
Fuel Tank 9.6 gal
System Relief @ Quick Couplers 2,900 psi
Auxiliary Std Flow 12.1 gal/min
Drive Type Hydrostatic drive with 4 individual drive motors

Performance

Rated Operating Capacity Straight (ISO) 1,534 lb
Rated Operating Capacity Art. (ISO) 1,222 lb
ROC with Counterweight Option Straight 1952 lb
ROC with Counterweight Option Art. 1475 lb
Tipping Load Straight 3068 lb
Tipping Load Art. 2444 lb
Operating Weight 4195 lb
Travel Speed 8.3 mph
Emissions Tier (EPA) Tier 4
Engine Cooling Liquid
Engine Fuel Diesel
Horsepower 24.8 hp
Turbocharged Engine no

Dimensions

Length 122.4 in
Length without Attachment 93.2 in
Length with Standard Bucket 122.4 in
Width (over tires) 46.5 in
Width (with bucket) 50 in
Height with Operator Cab 78.1 in
Height to Bucket Hinge Pin Ext 104.3 in
Height to Bucket Hinge Pin Ret 85.4 in
Max Reach 30.9 in
Turning Radius Inside 78.2 in
Turning Radius Outside 100.9 in
Wheelbase 47.2 in
Articulation Angle 43°
Dump Angle @ Maximum Height 40°
Ground Clearance 5.5 in
Rollback Angle 32°
Tire Size 23X10.5-12, 8 PLY
Wheel Tread 36.4 in
